How many inches of gravel for a driveway depends mostly on the soil under it. Over firm, well drained ground, 6 to 8 inches of compacted stone carries cars for years. Over average soil, plan on 9 to 11 inches in three layers. Over clay, silt, or anywhere the ground stays wet, build 12 to 14 inches on top of geotextile fabric. In every case the depth is split into layers of different stone sizes: large stone at the bottom for strength, medium stone in the middle to lock it together, and a dense top layer with fines that packs into a hard driving surface. Get the layer depths right, compact each one in thin lifts, and give the surface a crown so water leaves it, and a gravel driveway lasts indefinitely with light topping up.

This guide owns the depth and the stone. It covers depth per layer, stone sizes and their regional names, subgrade soil and fabric, crown and drainage, edging, compacting in lifts, and topping up later. Converting those depths into an order is a separate step, covered by the tools linked below.

Updated September 2026

Turn your depths into an order. Enter your driveway length, width, and the depth of each layer into our free gravel calculator, one layer at a time, since each layer is a different stone.

How many inches of gravel for a driveway, by soil and use

Start with this table, then read the sections below for why each layer is there. All depths are compacted depths, meaning the finished thickness after the stone has been compacted.

Two points that the table cannot show. First, the numbers assume you have removed the topsoil and are building on firm mineral soil. Stone laid on top of grass and topsoil sinks into it no matter how deep you go. Second, a thin layer of any stone on bare soil is not a driveway. Four inches of gravel over clay turns into ruts and mud within one wet season, because the stone gets pushed down into the soil faster than you can add more.

If you plan to pave the drive later, the stone base under asphalt is its own specification, and the base section of our asphalt driveway cost guide lays out those depths. A paver driveway needs a deeper, more tightly controlled base again, covered in paver driveway cost.

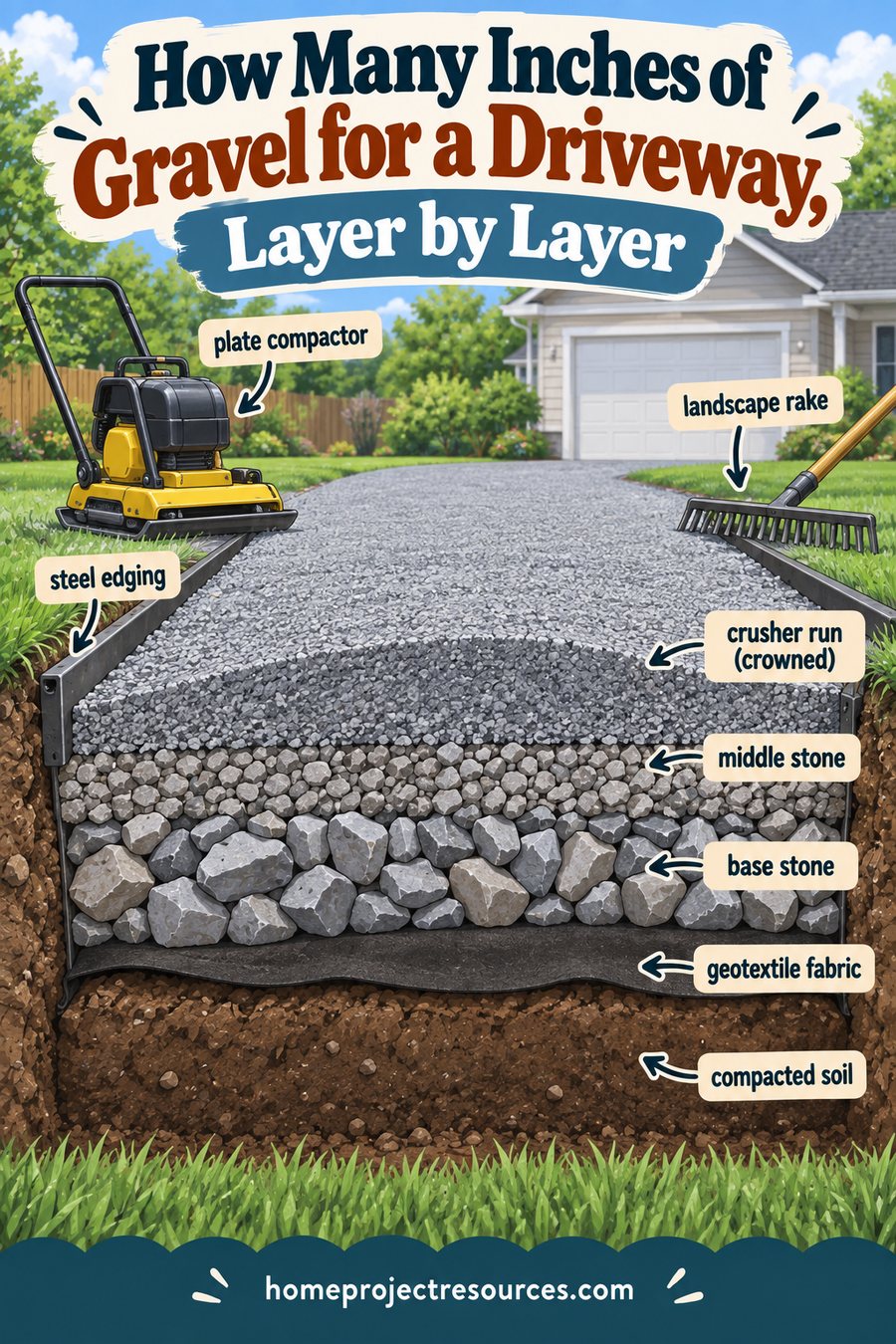

The stone sizes, and what each layer does

Gravel is sold by number, and the numbers come from standard size gradations used by highway departments. A higher number means smaller stone. Yards also use local names, so ask for the gradation, not just the name.

Clean stone versus dense graded stone. Clean or open graded stone, like #3 and #57, has been washed or screened so there are no fines. The gaps between the stones stay open, so water drains straight through. Dense graded stone, like crusher run, keeps every size down to dust. When it is dampened and compacted, the fines pack into the gaps and the whole layer sets up almost like a weak concrete. That is why the top layer is dense graded: it gives a firm surface that does not roll under tires.

Why the bottom layer is big stone. Large angular stone spreads a wheel load over a wide area of soil. Each stone wedges against its neighbors, so the layer resists being pushed sideways into the ground. On soft soil, bigger stone bridges weak spots that small stone would sink into.

Why the middle layer matters. If you put crusher run directly on #3 stone, the fines in the crusher run wash down into the large voids of the #3 over time. The top layer thins, the bottom layer clogs, and the driveway starts to pothole. A layer of #57 fills the surface voids of the #3 and gives the top layer something tight to sit on. Builders call it choking the stone.

Why angular stone, not round. Crushed stone has broken faces that lock together. Round pea gravel and river rock roll against each other like ball bearings. They never set up, tires sink and spin, and the stone migrates into the lawn. Rounded stone looks nice in a garden path and fails in a driveway.

The clean stone top option. Some owners top a drive with #57 instead of crusher run because it drains instantly, stays out of the house as dust and mud, and does not grow weeds as readily. The tradeoff is a looser surface that shifts under turning tires and is harder to shovel. On flat ground in a dry climate it works. On a slope, dense graded stone holds far better.

Subgrade soil: the layer nobody buys but everyone depends on

The soil under the stone does most of the work of holding up the car. The gravel spreads the load. The soil carries it. That is why the soil type decides the depth.

Strip the topsoil. Before any digging, call 811 a few days ahead so buried utility lines are marked. Topsoil is full of organic matter that compresses and rots. Remove all of it, usually 4 to 8 inches, until you reach the firmer mineral soil below. Keep stripping any soft pockets, old roots, and buried debris.

Identify what you are building on.

• Sand and gravel drain fast and stay firm when wet. They take the shallowest build.
• Loam is a mix. It holds up well when drained and softens when saturated.
• Silt feels smooth and turns soft and slippery when wet. It also heaves in freezing weather.
• Clay is sticky when wet and cracks when dry. It holds water, softens under load, and heaves with frost. It needs the deepest build and fabric.

A quick field test: squeeze a damp handful. Sand falls apart. Clay forms a ribbon you can push out between your thumb and finger. Silt feels like flour and holds a loose shape.

Grade the subgrade with the same crown as the finished drive. Shape the soil so it already sheds water to the sides. Stone laid over a flat or dished subgrade traps water in the base even if the top surface is crowned.

Proof roll it. Drive a loaded pickup or a loaded dump truck slowly over the prepared subgrade and watch the tires. Where the soil ruts deeply or visibly pumps and waves, it is too soft. Dig those spots out, often 6 to 12 inches deeper, and backfill them with compacted clean stone before continuing.

Do not build a bathtub. The most common gravel driveway failure on clay is digging a neat box into the ground, filling it with stone, and leaving the stone no exit. Water drains into the stone and sits there, because the clay around it will not let it out. The base stays saturated and the drive goes soft every spring. Either keep the finished surface above the surrounding ground so the base drains out the sides, or cut a daylight outlet for the base to the low side of the property, or run a perforated drain along the low edge. Our guide to French drain installation covers the pipe and stone detail for that last option.

Geotextile fabric under the stone

Fabric is a separation layer. It keeps the soil from pushing up into the stone and keeps the stone from punching down into the soil. Without it on clay or silt, the bottom few inches of stone mix into the mud within a couple of years and effectively disappear.

Use woven fabric for driveways. Woven geotextile looks like a flat plastic tarp made of tape. It is strong in tension and is the standard separation and stabilization fabric under drives. Nonwoven fabric looks like felt. It filters water well and belongs around drain pipe, not under driving loads. Thin garden weed barrier is neither, and it tears under the first load of stone.

Lay it right.

1. Roll the fabric out on the prepared, crowned subgrade, parallel to the direction of travel.
2. Pull it snug with no wrinkles, and pin it with landscape staples.
3. Overlap the seams at least 12 inches on firm soil and 18 to 24 inches on soft soil.
4. Run it up the sides of the excavation so the stone stays wrapped at the edges.
5. Never drive on bare fabric. Dump stone on the end of the fabric that is already covered, and push it forward with a loader or a skid steer so the machine is always riding on stone.

Geogrid for the worst ground. On soil that still pumps after undercutting, a geogrid laid over the fabric adds tensile strength and lets the stone layer act like a stiff mat. It is a step for genuinely soft sites, not a default.

Crown, slope, and getting water off the drive

Water is what destroys a gravel driveway. Standing water softens the base, and running water carries the fines out of the top layer. A drive that sheds water quickly needs far less maintenance.

Crown the surface. A gravel driveway needs more crown than a paved one, because the surface is rougher and water moves slower across it. Aim for about 4 percent, which is roughly 1/2 inch of fall per foot from the centerline to each edge. On a 12 foot wide drive, that puts the center about 3 inches above the edges. On a drive with a cut bank on one side, a single cross slope toward the open side works instead of a center crown.

Give the water somewhere to go. A crown only moves water to the edges. From there it needs a shallow swale or ditch along the side, sloped to a safe outlet. Where the drive crosses a roadside ditch, a culvert keeps the ditch flowing under it. The size, material, and placement of that culvert are often set by the town or county road department, so check before you buy pipe.

Handle long slopes. On a drive that runs steeply downhill, water running down the length of the drive cuts channels and strips stone. Break up the flow every so often with a water bar, which is a low, angled hump that turns water off the drive to the side. A buried rubber belt diverter set at an angle does the same job and is easier to drive over. On the steepest sections, a dense graded top layer and closer water bars matter more than extra depth.

Keep roof water off it. A downspout that empties onto the edge of a gravel drive washes a trench in one storm. Extend it or pipe it away.

Edging that keeps the stone where it belongs

Without a hard edge, every car that drives near the side pushes stone outward. Over a few years the edges thin to almost nothing, the lawn creeps in, and the drive gets narrower and weaker at exactly the place a tire drops off.

Common choices:

• Steel or aluminum landscape edging. Staked every few feet, it gives a clean line and holds stone well. Set it so the top sits at or just below the finished stone on drives that get plowed, or the blade will catch it.
• Concrete curb. A small poured or precast curb is the most durable edge and survives plowing. It is also the most work to install.
• Pavers or cobbles set in concrete. A good looking border that acts as a curb when set on a concrete haunch.
• Landscape timbers. Easy to install, and they rot in contact with soil, so plan to replace them eventually.
• A soil or turf shoulder. No edging at all, with the lawn graded up to the finished stone. This is traditional on rural drives and works, but expect more stone loss and more regular raking.

Whichever edge you choose, the stone layers should run the full width all the way to it. A drive built thinner at the edges fails at the edges.

Compacting in lifts

Compaction is where good layer depths turn into a real driveway, and it is where most homeowner builds fall short. A compactor only compacts to a certain depth. Dumping all the stone and running a machine over the top leaves the bottom loose, and the loose bottom settles into ruts later.

Loose depth is not finished depth. Dense graded stone like crusher run loses about a fifth to a quarter of its loose thickness when compacted. To finish at 3 inches, spread about 3 3/4 inches loose. Clean stone like #3 and #57 does not compact much. It seats and locks, losing roughly a tenth of its loose depth. Keep this in mind when you set your depth stakes and when you enter depths into the gravel calculator, because it asks for the finished depth.

Set depth stakes. Drive stakes along each edge and the centerline every 10 to 15 feet, and mark the top of each layer on them. Or run string lines at the finished height. Without a reference, it is almost impossible to judge depth while you spread.

Dampen dense graded stone. Crusher run compacts best when it is moist, not dry and not soaked. Dry stone stays loose and dusty no matter how many passes you make. Soaked stone pumps and squeezes out. Mist it with a hose until a squeezed handful holds together, then compact.

Make enough passes. Work the compactor in overlapping passes from the edges toward the center, so you do not push the crown flat. Keep going until the machine stops leaving a visible track and starts to bounce slightly. A boot heel should not sink into a finished lift.

Seat clean stone, then choke it. A roller or heavy plate over #3 stone does not make it hard. It settles the stones against each other. The #57 layer then fills the surface voids and makes the combined layers firm.

Worked example: a 12 by 80 foot drive over clay

A new single lane drive runs 80 feet from the road to a garage, 12 feet wide. The soil is clay, the region gets hard freezes, and a delivery truck comes up the drive a few times a year.

Depth choice. Clay and frost point to the 12 to 14 inch row of the table, with fabric.

Excavation. The crew strips 6 inches of topsoil and finds firm clay. The finished drive will sit about 3 inches above the lawn at its edges, so the subgrade is cut to leave the stone surface at that height. Because most of the base still sits below the lawn in clay, a daylight outlet is cut from the bottom of the base to the roadside ditch so the buried stone can drain. The clay is graded with a 1/2 inch per foot crown from the centerline.

Proof roll. A loaded pickup ruts badly in one spot near the old downspout. That area is dug out another 8 inches and backfilled with clean #3 stone, compacted. The downspout is piped away from the drive.

Fabric. Woven geotextile goes down the full length with 18 inch overlaps and runs up the sides of the excavation.

Layer one. 6 inches of compacted #3 stone, pushed out over the fabric from the road end so no tire touches bare fabric, then seated with a vibratory roller.

Layer two. 4 inches of compacted #57, spread about 4 1/2 inches loose and rolled into the #3.

Layer three. 3 inches of compacted crusher run, spread about 3 3/4 inches loose in two lifts, dampened, and compacted with a plate compactor from the edges to the center to keep the crown.

Edges. Steel edging along the lawn side, set flush with the finished surface because the drive gets plowed. A shallow swale along the uphill side carries water to the ditch at the road.

Total. 13 inches of compacted stone over fabric. To order, each layer goes into the gravel calculator separately at 80 by 12 feet and its own depth, and the weight conversion for each stone type is in cubic yards to tons. Irregular shapes like a parking pad or a turnaround can be measured first with the square footage calculator.

Topping up and maintaining the depth

A gravel drive is never finished, but a well built one needs very little.

After the first winter. Expect some settling, especially where the subgrade was soft. Rake the surface back into its crown and add a thin top dressing of the same top stone where it has thinned.

Every year or two. Add about 1 inch of top layer stone to the whole drive, or wherever it is thin, then rake, dampen, and compact it. Traffic, plowing, and rain all move stone off the surface over time. Topping up before the base shows through keeps you from ever rebuilding the lower layers.

Regrade each spring. A landscape rake on small drives, or a box blade with scarifier teeth behind a garden tractor on long ones, pulls stone from the edges back to the center and restores the crown. Loosen the top inch before you regrade so the new surface bonds instead of sliding.

Fix potholes properly. Dropping a shovel of loose stone in a pothole only works until the next tire rolls it out. Dig out the loose material down to firm base, square the sides of the hole, fill it with the same dense graded top stone in thin damp lifts, and tamp each lift. Leave the patch slightly high so traffic finishes compacting it.

Plow with the blade raised. Set the plow blade or snowblower skid shoes about an inch above the surface. A blade on the stone scrapes the top layer into the lawn every storm, and that stone is the driveway you will be hauling back in spring.

Consider stabilizer grids for problem spots. On a slope or a turnaround where stone keeps migrating, plastic honeycomb grid panels filled with gravel hold the surface in place. They go down over a compacted base with the top layer stone filled into the cells.

Frequently asked questions

How deep should a gravel driveway be?

Between 6 and 14 inches of compacted stone, depending on the soil. Firm sandy or gravelly soil needs 6 to 8 inches. Average soil needs 9 to 11 inches in three layers. Clay, silt, and wet ground need 12 to 14 inches over woven geotextile fabric. Always strip the topsoil first and build on firm mineral soil.

What size gravel is best for a driveway?

Use three sizes in layers. #3 stone, about 1 to 2 inches, on the bottom for strength. #57 stone, nominally 3/4 inch, in the middle to lock the layers together. Crusher run or #411 on top, because the stone dust in it compacts into a firm driving surface. Avoid rounded pea gravel and river rock, which roll under tires and never set up.

Can I just put crusher run on dirt for a driveway?

On firm, well drained soil, yes. A single material build of 6 to 8 inches of crusher run, compacted in 3 to 4 inch lifts, is common and works well for cars. On clay or wet soil, crusher run alone sinks into the ground and ruts, so you need fabric and a larger stone base underneath.

Do I need landscape fabric under a gravel driveway?

On clay, silt, or wet ground, yes, and it should be woven geotextile rated for driveways, not garden weed barrier. The fabric keeps soil from mixing into the stone. On clean sand or gravel soil it is optional. Overlap seams 12 inches on firm soil and 18 to 24 inches on soft soil, and never drive directly on bare fabric.

How thick should each lift be when compacting gravel?

About 3 to 4 inches of dense graded stone per lift with a standard rental plate compactor, up to 6 inches with a reversible plate, and 6 to 8 inches with a vibratory roller. Dampen crusher run before compacting. Spread it about a quarter deeper than the finished thickness you want, since it loses that much when compacted.

How much crown does a gravel driveway need?

About 4 percent, or roughly 1/2 inch of fall per foot from the center to each edge. A 12 foot wide drive should be about 3 inches higher in the middle than at the edges. Shape the subgrade soil with the same crown before any stone goes down, and give the water a swale or ditch to run into.

How often do you add gravel to a driveway?

Plan on about 1 inch of top layer stone every one to two years, depending on traffic, plowing, and rainfall. Regrade the crown each spring, and fix potholes by digging to firm base and refilling with damp, tamped crusher run rather than dropping loose stone in the hole.

Why is my gravel driveway always muddy?

Usually one of three causes. The stone is too thin for the soil, so clay is pushing up through it. There is no fabric, so soil and stone have mixed. Or the base is sitting in an excavated box with no outlet, so water collects in the stone. Fixing it means adding fabric and depth over a crowned subgrade and giving the base a way to drain out.

The short version

Build on firm soil after stripping the topsoil, and match the depth to that soil: 6 to 8 inches on sand or gravel, 9 to 11 on average ground, and 12 to 14 over woven fabric on clay. Put #3 stone on the bottom, #57 in the middle, and crusher run or #411 on top. Crown the subgrade and the surface at about 1/2 inch per foot, give the water a place to go, and hold the edges with a hard border. Compact every layer in thin, damp lifts, spreading dense graded stone about a quarter deeper than its finished thickness. Then top up an inch every year or two and regrade each spring.
