The pattern you pick changes two things at once: how the floor looks, and how much tile you have to buy. Every angled cut throws away part of a tile, so a pattern with more cuts needs a bigger waste allowance. Straight-set wastes the least at around 10 percent, while diagonal and herringbone need 15 to 20 percent, and chevron can push past 20 percent because the tiles have to be cut on an angle before they ever reach the floor.

That difference is real material. On a 200 square foot kitchen, the gap between a 10 percent and a 20 percent allowance is 20 square feet of tile you have to buy, plus a day of extra labor you have to pay for.

Know your pattern? Run the numbers with our free Tile Calculator and it will apply the right waste factor and give you a box count instead of a square footage you still have to convert.

Updated August 2026

A note on numbers. This page gives you the waste factors, the layout steps, the labor multipliers between patterns and the quantity math, not dollar figures. Tile and setting labor are priced by material, by market and by installer, and a printed range would be wrong for most readers. Work out your quantities here, then get three quotes on the same pattern and the same square footage.

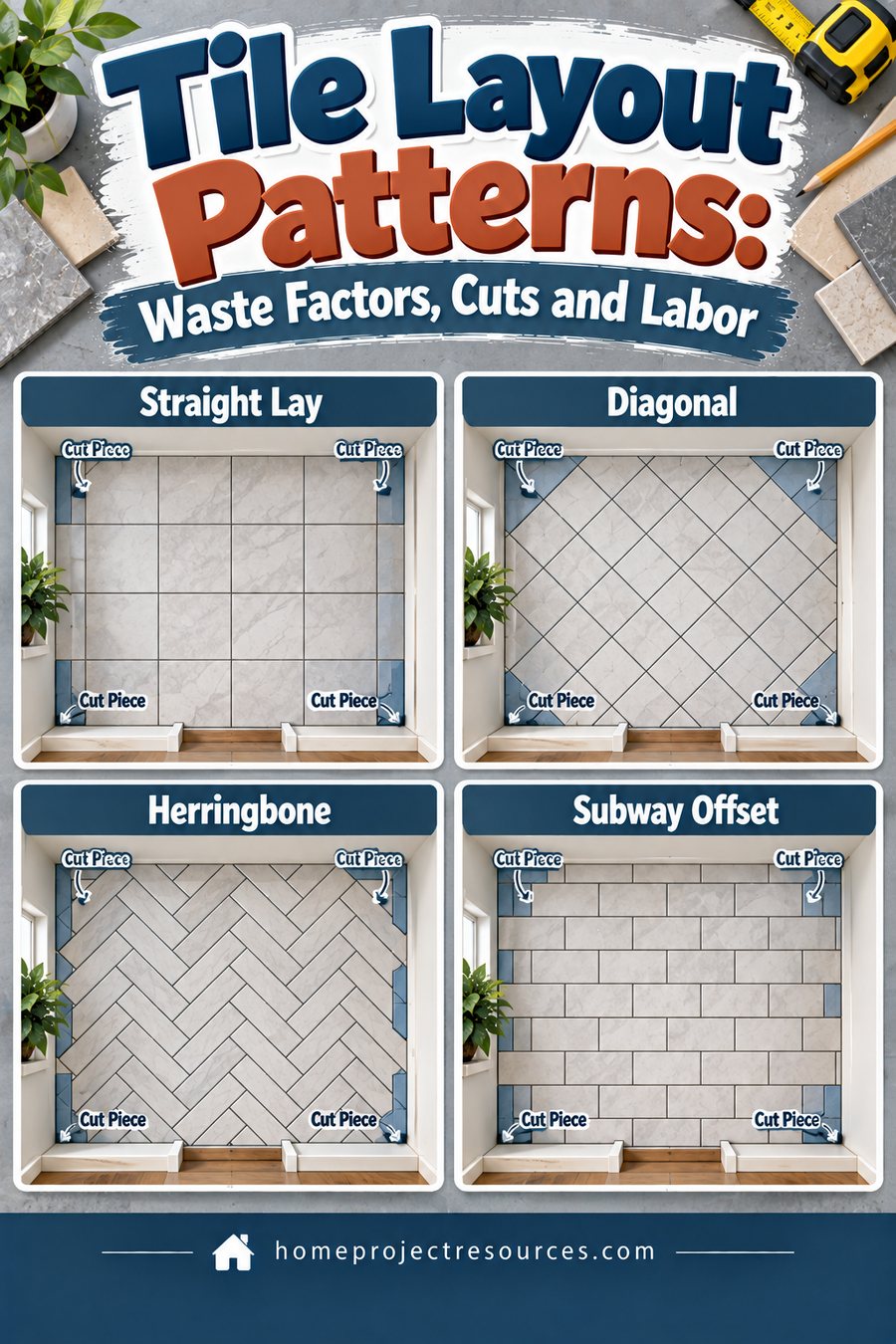

Tile Layout Patterns and Their Waste Factors

Waste allowance is not a fudge number. It covers three specific things: the tile you cut off at walls and never use, the pieces that break during cutting, and the attic stock you keep for future repairs. Complex patterns eat more of all three.

Order your tile in one purchase from one lot. Dye lots and stone batches vary, and running short in week two of a job means either a visible color break or a long wait.

Two notes on that table that matter more than the pattern names.

Large-format tile should never be laid in a half offset. Big tiles have a slight crown in the middle, and a half offset puts the high point of one tile against the corner of the next, which creates lippage you can feel with your foot. A one-third offset is the standard, and most tile manufacturers now specify it as a maximum of 33 percent.

Chevron is not a layout you improvise. True chevron tiles are manufactured with 45 degree ends. If you try to make chevron from ordinary rectangles, you are cutting every single piece twice, and 20 percent waste becomes optimistic.

How to Lay Out Tile Without Ending on a Sliver

Here is the mistake almost everyone makes: they start at a wall, work across the room, and end up with a two-inch strip of tile at the far side. That strip is called a sliver cut, and it is the single most common tile regret. It looks like a mistake even to people who know nothing about tile, and it is impossible to fix later without pulling the floor.

The fix is to start in the middle and work out, so the cuts land evenly on both sides.

The layout process, in order:

1. Measure and find the center of the room. Snap a chalk line between the midpoints of two opposite walls, then a second line at 90 degrees to it. Where they cross is your start point.
2. Check that the room is actually square. Measure 3 feet along one line, 4 feet along the other, and the diagonal between those marks should be exactly 5 feet. Most rooms are not square. Older houses can be off by an inch or more across a room.
3. Dry-lay a full row in both directions. No thinset, just tile and spacers running from the center line out to each wall. This takes 15 minutes and it is the whole game.
4. Look at what lands at each wall. If the end piece is less than half a tile, shift your entire layout by half a tile. That turns two slivers into two comfortable cuts.
5. Protect the visible edge. Decide which wall people see first when they walk in, then bias the layout so the full tiles are there and the small cuts hide under the vanity, behind the door swing, or along the wall the sofa sits against.
6. Account for the out-of-square wall. If a wall is off by an inch over 10 feet, do not chase it with the tile. Keep the field square to the room's center lines and let that one wall absorb the taper, ideally a wall that will be least visible.
7. Mark your reference lines and stick to them. Once the thinset is down there is no going back to check. Re-snap lines every few rows on a big floor.

A dry-lay is also the moment to catch a pattern that repeats badly. Versailles and basketweave both work in modules, and a room that fits three and a half modules across will look worse than one where you shift the start point and get an even half module at each side.

Travertine Tile Layout and the Versailles Pattern

Most travertine sold for floors comes in a Versailles pattern set, also called the French pattern. It is not a single tile size. It is four sizes sold together in a ratio designed to fill a repeating module with no continuous grout line running across the floor.

The standard metric-based set uses 8x8, 8x16, 16x16 and 16x24 inch pieces, and one full module covers roughly 16 square feet before grout. A common alternative uses 6x6, 6x12, 12x12 and 12x18 for a smaller-scale repeat.

Because the set is pre-proportioned, you do not choose the mix. You buy modules, and the pattern repeats every 16 square feet in a way that reads random from standing height. Lay out at least two full modules dry before you set anything, because the eye picks up a repeating module quickly if all your seams line up between modules.

Waste for a Versailles travertine tile layout runs 12 to 15 percent. Field cuts are fewer than herringbone since most pieces stay whole, but the perimeter of the room forces cuts across all four sizes, and you cannot substitute one size for another when you run short.

Filled versus unfilled travertine

Travertine is a natural stone full of small voids. Filled travertine has those voids filled with resin or cement at the factory and sanded flat, which gives a smooth surface that is easier to clean and much easier to live with on a floor. Unfilled travertine leaves the holes open, which looks more natural and gives more grip, but the holes collect dirt and eventually need filling with grout during installation.

For a floor with foot traffic, filled and honed is the practical choice. Save unfilled for a wall or a low-traffic patio.

Natural stone needs sealing, porcelain does not

This is the difference that costs people money later. Travertine, marble, limestone and slate are porous. They need a penetrating sealer before grouting and again every 1 to 3 years depending on traffic, and travertine specifically etches when it meets anything acidic, which includes lemon juice, vinegar, wine, and most bathroom cleaners.

Porcelain is fired to near zero water absorption. It never needs sealing, it does not etch, and a porcelain tile that looks like travertine is a genuinely reasonable choice if you like the look but not the maintenance. The only thing you seal on a porcelain floor is the grout.

Budget for sealer as a real line item on stone. A gallon covers roughly 200 to 500 square feet per coat depending on how thirsty the stone is, and you will buy it again every year or two for as long as you own the floor. Over a decade that recurring purchase costs more than the one time upcharge to porcelain would have, which is worth knowing before you choose the stone.

Floor Tile Layout by Room

The right pattern depends less on style and more on what else is in the room.

Small bathrooms

Large tile with thin grout lines makes a small bathroom read bigger. Fewer grout lines means fewer visual interruptions, and the eye reads the floor as one surface instead of a grid of small squares. A 12x24 tile in a running bond, or a 24x24 straight-set, both work well in a 5x8 bath.

A diagonal layout also stretches a small room, because the longest sight line across the floor becomes the diagonal rather than the wall. The tradeoff is 15 to 20 percent waste, and in a room this small that extra allowance is only a few square feet of tile. Percentages sound expensive and small rooms make them cheap, which is exactly why the ambitious pattern belongs in the bathroom and not in the open plan floor.

Entryways

This is where herringbone earns its keep. An entry is small, highly visible, and usually the room a visitor sees first. A herringbone or Versailles floor in 30 square feet costs very little extra in material and makes a strong impression. It also naturally directs the eye forward into the house.

Kitchens

Kitchens are where pattern most often goes wrong. If you have a busy granite or quartzite countertop with a lot of movement, a busy floor fights it. One surface should be quiet. Pick the countertop or the floor to be the interesting one, not both.

Kitchens also have appliances that get pulled out and pushed back. Straight-set and running bond both make future repairs simple, because a damaged tile is replaced by one identical tile. In herringbone, replacing a broken tile means matching the angle and the direction, which is doable but fussier.

Showers and shower floors

Shower walls take stacked vertical, running bond, or straight-set well. Shower floors need a small enough tile to follow the slope toward the drain, which is why 2x2 mosaic or penny round is the default. Larger tiles cannot conform to a pitched pan without lippage.

If you want herringbone in a shower floor, buy it as mesh-mounted mosaic sheets. The sheets flex enough to follow the slope and you avoid setting hundreds of individual chips.

Laundry rooms and mudrooms

Pinwheel and hopscotch layouts do well here. The pattern is visually active enough to hide dirt and wear, the rooms are small so the waste cost is low, and nobody stands there long enough for the pattern to feel loud.

Grout Line Width and Color

Grout does more to the finished look than most people expect. The same tile in the same pattern can read completely differently depending on the grout.

That last row is the trap. Contrast grout is the reason people fall in love with a herringbone photo online, and it is also the reason a slightly sloppy install looks terrible. Contrast grout audits your work. If you or your installer are not confident, go closer in tone.

For floors, avoid bright white grout no matter how good the photo looks. Traffic will turn it gray in a year. A mid-tone gray, greige or sand color stays looking the same for a decade.

Sanded grout goes in joints 1/8 inch and wider. Unsanded goes in joints narrower than 1/8 inch. Using sanded grout in a very narrow joint packs badly, and unsanded in a wide joint shrinks and cracks.

What Tile Patterns Do to Your Labor Line

Materials are only part of the pattern decision. A complex layout takes longer per square foot, and installers price accordingly. The useful number is the multiplier against a straight set floor, because that ratio holds across markets even though the underlying rate does not.

Read that table as a budgeting tool. If a straight set quote comes back at a number you can live with, herringbone on the same floor will land roughly a third to a half higher on the labor line alone, before the extra tile.

Add to that any substrate work. Self leveling compound and uncoupling membrane are both priced by the square foot and both apply regardless of pattern, but large format is the layout that most often demands them, because a flat tile shows every dip in a floor. If a bid for a large format floor has no substrate preparation line on it, ask what the installer measured the floor with.

Tile installers in most markets also have a minimum job charge, so a small bathroom floor rarely comes in below it even when the square footage math suggests it should. That minimum is worth asking about before you assume a tiny floor is a tiny bill.

Worked Example: 5x8 Bathroom Floor, Herringbone vs Straight Set

Take a standard 5x8 hall bathroom. The floor is 40 square feet before the vanity footprint, and we will tile the whole rectangle since a vanity can be replaced later. The tile is 12x24 inch porcelain sold in boxes of 8 pieces covering 15.5 square feet.

Straight set at a 10 percent waste allowance: - 40 sq ft x 1.10 = 44 sq ft needed - 44 / 15.5 = 2.84 boxes, so buy 3 boxes, which is 46.5 sq ft - Labor is priced at the baseline multiplier, 1.0x

Herringbone at an 18 percent waste allowance: - 40 sq ft x 1.18 = 47.2 sq ft needed - 47.2 / 15.5 = 3.05 boxes, so buy 4 boxes, which is 62 sq ft - Labor is priced at roughly 1.4x the straight set rate

So the pattern change costs you one extra box of tile and about 40 percent more on the labor line. On a floor this small, the labor is roughly three quarters of the difference and the tile is the rest, which is the single most useful thing to take from this example: on a small floor, an ambitious pattern is affordable, because 40 percent of a small labor number is still a small number. Scale that same decision up to a 600 square foot open plan floor and the labor premium alone becomes one of the larger line items in the room. Same choice, completely different conversation.

Note the box rounding in the herringbone case. Needing 3.05 boxes means buying 4, so you end up holding almost 15 extra square feet. That is annoying but not wasted. Keep it as attic stock for repairs, because in five years that exact tile in that exact dye lot will not exist, and a single cracked tile with no match is how a good floor starts looking bad.

Ask each bidder to quote both patterns on the same floor. The gap between those two numbers, in your market with your installer, is worth far more than any published multiplier, and it takes them five minutes to produce.

To get the same math for your own room, measure with the square footage calculator first, then feed that number into the tile calculator with your chosen pattern's waste factor.

Frequently Asked Questions

How much extra tile should I buy for a herringbone pattern?

Order 15 to 20 percent over your measured square footage for herringbone, and round up to whole boxes after that. The pattern creates angled cuts at every wall, and the offcuts from a 45 degree cut usually cannot be reused elsewhere. If the room has a lot of jogs, closet returns, or a diagonal wall, use 20 percent.

What tile layout pattern is cheapest to install?

Straight-set grid is the cheapest, both in tile and in labor. It has the fewest cuts, the lowest waste factor at around 10 percent, and no labor premium. Brick or running bond costs essentially the same, so if you want a little visual interest at no extra cost, a one-third offset running bond is the best value in tile.

Does diagonal tile really make a room look bigger?

It usually does, and the reason is geometry rather than magic. A diagonal layout makes the longest visual line across the floor the room's diagonal instead of its width, and the grout lines no longer echo the wall lines, so the eye stops measuring the room against them. The cost is 15 to 20 percent waste and a modest labor premium.

Which way should floor tile run in a narrow room?

Run the long dimension of a rectangular tile parallel to the room's longest wall to reinforce the length, or perpendicular to it to make a narrow hallway feel wider. Both are correct choices for different goals. In a hallway, most installers run planks lengthwise because it reduces cuts and looks intentional.

Do I need to seal travertine tile?

Yes. Travertine is porous natural stone and needs a penetrating sealer before grouting and again every 1 to 3 years. It also etches on contact with acids, so keep vinegar, lemon, and standard bathroom cleaners off it and use a pH-neutral stone cleaner instead. Porcelain tile never needs sealing, though its grout benefits from it.

What is the Versailles or French tile pattern?

It is a repeating module built from four different tile sizes, most often 8x8, 8x16, 16x16 and 16x24 inches, arranged so no grout line runs continuously across the floor. It is the standard way travertine is sold, usually in boxed sets that cover about 16 square feet per module. Budget 12 to 15 percent waste.

How do I avoid a sliver cut at the wall?

Start your layout from the room's center rather than a wall, dry-lay one full row in each direction, and check what size piece lands at each end. If the end piece is less than half a tile wide, shift the whole layout by half a tile and both ends become comfortable cuts. Do this before any thinset goes down.

Should grout match the tile or contrast with it?

Match the tile if you want the floor to read as one calm surface, which suits large-format tile and small rooms. Contrast if the pattern itself is the feature, like herringbone or subway tile, and you want the geometry to show. Contrast grout also shows every imperfection, so only choose it if the install will be tight.
