How to Use a Stud Finder
Here is how to use a stud finder in five moves: put it flat on a blank section of wall, hold the button and let it calibrate, sweep slowly sideways until it signals, mark the edge, then keep going and mark the far edge too. The center of those two marks is the center of the stud. Then confirm it by measuring 16 inches to each side and finding its neighbors in the same places.
That last step is the one almost everyone skips, and it is what separates a hit from a hole. A single beep can be a pipe, a wire bundle, a drywall seam, or a wet patch. Three studs evenly spaced 16 inches apart is a framed wall. Confirmation is free, and drywall repair is not.
Updated September 2026
Working on the wall itself, not just hanging on it? Our free drywall calculator turns wall dimensions into sheet count, screws, joint compound, and tape, and it works off the same 16 or 24 inch framing layout your stud finder is about to reveal.

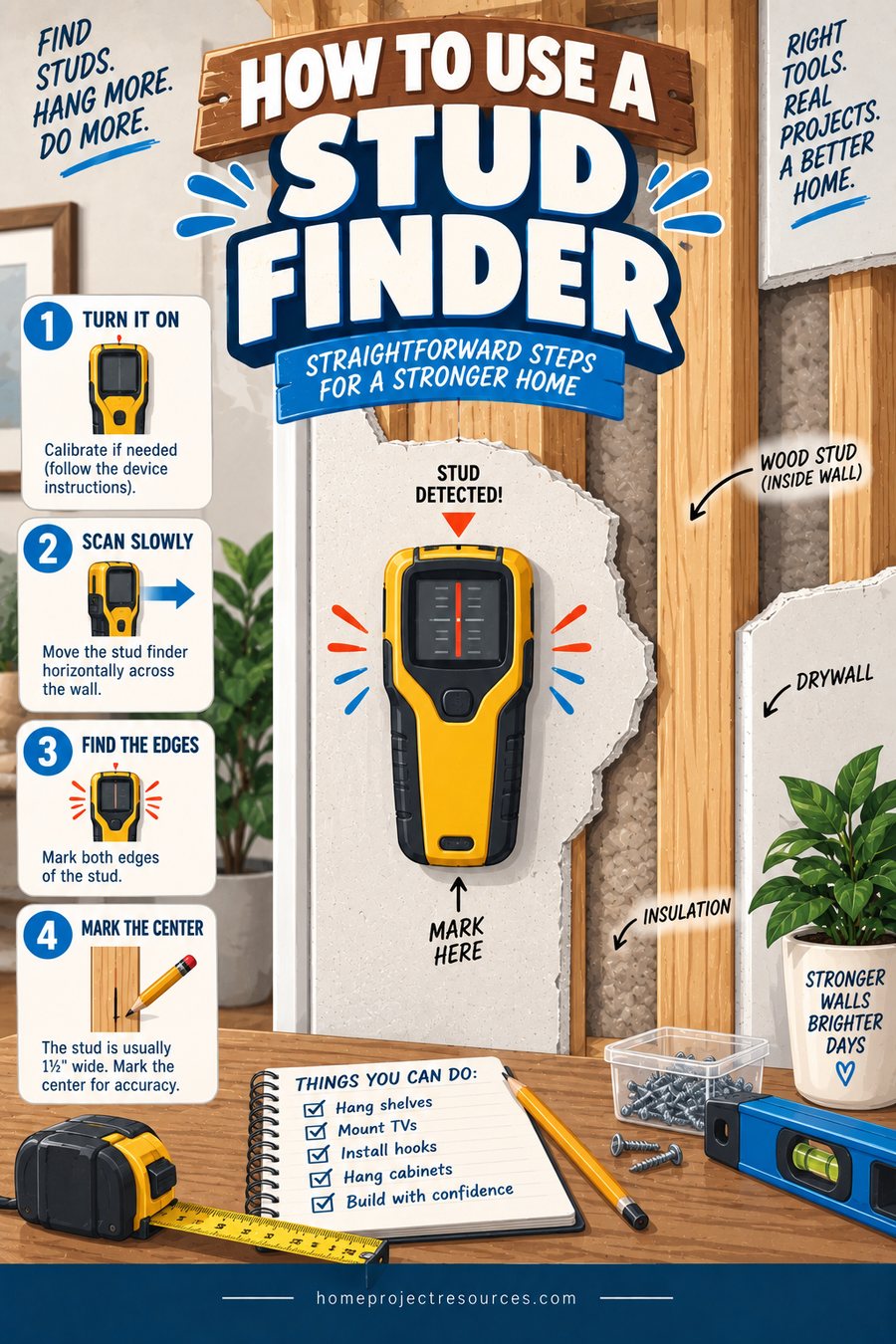

How to use a stud finder, step by step
1. Start on blank wall, away from where you think a stud is
Electronic stud finders work by sensing a change in density behind the surface. They set their baseline the moment you press the button, so the reading is only as good as the starting point. Start directly over a stud and the tool calibrates the stud as "normal" and then reports the empty bays as anomalies. You will get the layout exactly backward.
Pick a spot at least 12 inches from where you expect framing, and keep the whole sensor pad flat against the wall.
2. Hold the button down and wait for the ready signal
Do not slide the tool while it is still calibrating. Most units flash or beep when they are ready, usually within a second or two. Hold the button continuously through the entire sweep. Releasing it mid-sweep recalibrates on whatever it is sitting on right now.
3. Sweep slowly, horizontally, at a consistent height
Slow is not optional. Move about 1 inch per second, no faster. Rushing is the number one reason people say their stud finder is inaccurate. Keep the tool level and keep the pressure even, both hands if the unit is wide.
4. Mark both edges, then take the middle
Cheap edge-finding models signal when they cross the edge of a stud, then go quiet, then signal again on the far edge. Better center-finding models light up a full bar and tell you when you are over the middle.
Either way, mark both edges with a pencil. A standard 2x4 stud presents a 1.5 inch face, so your two marks should be about 1.5 inches apart and the center sits 0.75 inch from each edge. If your two marks are 3 inches apart, you found a doubled stud, a corner, or a door king stud and trimmer. If they are 5 inches apart, you probably found a pipe chase or a duct.
5. Confirm with the 16 inch rule, then verify physically
Measure 16 inches left and 16 inches right of your center mark and scan again. Modern US framing is almost always 16 inches on center, with 24 inches on center used in some newer construction and many garages and non-bearing walls.
If studs turn up at 16 inch intervals in both directions, you have found the real layout. If you get nothing at 16 or 24 inches, be suspicious of your original hit.
Final verification takes ten seconds: drive a finish nail or a 1/16 inch drill bit through the drywall at your center mark, in a spot the mount or the hanger will cover. Solid resistance after about 1/2 inch of drywall means wood. No resistance means empty bay, and the pinhole disappears with a dab of compound. Our guide to how to patch drywall covers anything larger.
Types of stud finders and which one you need
| Type | How it works | Best for | Weak spots |
|---|---|---|---|
| Magnetic, stationary | Rare earth magnet locks onto drywall screws and nails | Plaster, any wall thickness, no batteries | Finds fasteners, not the stud center; slow to sweep |
| Electronic edge finder | Senses density change, signals at each stud edge | General drywall use, budget option | Needs correct calibration, confused by texture |
| Electronic center finder | Multiple sensors, reports the center directly | Everyday hanging, fast and accurate | Costlier, still fooled by moisture and metal |
| Deep scan mode | Reads through thicker or double-layer surfaces | Double drywall, plaster and lath, tile backer | More false positives, needs slower sweeps |
| AC live wire detection | Detects the field around energized cable | Anyone drilling deep into a wall | Only sees energized, unshielded cable |
| Metal scan mode | Distinguishes ferrous from non-ferrous metal | Metal studs, finding pipe and conduit | Cannot tell a pipe from a stud track alone |
| Radar or multi-sensor | Imaging through concrete and thick assemblies | Concrete, masonry, commercial work | Expensive, has a learning curve |
For a homeowner doing normal hanging work, a center-finding electronic model with AC detection plus a cheap magnetic finder as a backup is the practical pair. The magnet is the tiebreaker. When the electronic unit gives you a confusing reading, the magnet either sticks to a fastener or it does not, and fasteners only exist where framing exists.
How to find a stud without a stud finder
Every one of these works, and together they are as reliable as any tool.
- Follow the screw line with a magnet. Drywall screws sit in a vertical column down every stud, roughly 12 to 16 inches apart. Drag a strong magnet slowly up and down and it will grab. Two grabs in a vertical line is a stud.
- Start from a corner. Framing layout runs from a corner, so the first stud center usually sits at 16 inches from the inside corner, and every 16 inches after.
- Use an outlet or switch box. Boxes are nailed to the side of a stud. Turn off the circuit, pull the cover plate, and look for which side the box is attached to. The stud is right there, and the next one is 16 inches away.
- Look at the baseboard. Baseboard is nailed into studs. Small filled nail holes, visible in raking light from a flashlight held flat against the wall, form a map of the framing.
- Knock and listen. Hollow between studs, solid over them. Crude, but it narrows the search to 2 or 3 inches, and then the magnet or the pin confirms it.
- Check the ceiling. In an unfinished basement or attic, look at how joists and top plates run. The framing you can see tells you what the framing you cannot see is doing. That same reasoning is the core of how to tell if a wall is load bearing.
What throws a stud finder off
If the readings are noisy or nonsensical, one of these is usually the cause.
| Problem | Why it confuses the tool | What to do |
|---|---|---|
| Heavy wall texture | Sensor pad cannot sit flat, gaps read as density change | Tape a thin piece of cardboard to the wall and scan through it |
| Plaster and wood lath | Lath strips read like a wall full of studs | Use a magnetic finder for the lath nails, or deep scan mode |
| Metal lath under plaster | Blocks the sensor entirely | Magnetic finder only, or scan from the other side of the wall |
| Foil-backed insulation or foil wallpaper | Acts as a shield | Locate from an adjacent room or use the outlet box method |
| Tile, stone, or backer board | Too dense and too thick for standard mode | Deep scan, or find the studs before the tile goes on |
| Double layer drywall | Doubles the depth to the framing | Deep scan mode, sweep even slower |
| Recently wet drywall | Moisture reads as high density | Let it dry out, or work from known layout instead |
| Weak battery | Sensitivity drops before the low battery light comes on | Replace the battery, then recalibrate |
| Hand pressure changing mid-sweep | Baseline shifts | Two hands, even pressure, one continuous motion |
| Starting over a stud | Calibrates the stud as the baseline | Recalibrate on a blank section |
One diagnostic worth knowing. If the tool signals almost everywhere, it calibrated on something dense. Move 2 feet and start again. If it signals nowhere, it calibrated on the emptiest possible bay or the battery is fading. Either way, recalibrating solves most of what people call a broken stud finder.
Worked example: locating studs for a 55 inch TV mount
A 55 inch class TV in 16:9 measures about 48 inches wide and 27 inches tall. The mount is a full motion arm rated for the set, with a plate designed for a 16 inch stud spread.
Step 1, find the first stud. Scan a 6 foot stretch of wall at about 40 inches off the floor. Suppose edges come up at 61.25 and 62.75 inches from the left corner. Center mark: 62 inches.
Step 2, confirm the layout. Scan at 46 inches and at 78 inches from the corner. Studs turn up in both places. That is a confirmed 16 inch on center layout, and the confirmed centers are at 46, 62, and 78 inches.
Step 3, pick the pair. Use the studs at 62 and 78 inches, a 16 inch spread, and set the mount plate so its bolt holes land on both centers. The TV is 48 inches wide, so with the plate centered at 70 inches, the screen spans 46 to 94 inches from the corner. Check that against the furniture below before you drill.
Step 4, set the height. Comfortable seated viewing puts the center of the screen near eye level, which is about 42 inches from the floor for most sofas. The screen is 27 inches tall, so half of that is 13.5 inches, and the bottom edge lands at 28.5 inches from the floor. Mark the plate position from the bottom edge target, not from the ceiling.
Step 5, drill for lag bolts. Typical mounts use 5/16 inch lag bolts. With 1/2 inch drywall in the way, a 3 inch lag gives about 2.5 inches of penetration into the stud, which is what you want. Pilot at roughly 3/16 inch so the threads bite without splitting.
Step 6, verify before the full weight goes on. Drive the first lag partway. Wood pulls in with steady resistance and produces fine shavings. If it spins free after an inch, you missed. Back it out, re-scan, and patch the hole later.
Full mount selection, VESA patterns, and the no-stud options are covered in how to hang a tv.
Metal studs, plaster, and other special cases
Metal studs. Common in condos, high-rises, basements, and commercial spaces. Steel studs are usually 1.25 inches wide at the face, and they read strongly on any metal scan mode. The catch is that steel studs are hollow and thin, so lag bolts are useless. Use toggle bolts or purpose-made metal stud anchors, and understand that a heavy load on metal studs may need blocking installed inside the wall, which means opening it. Check the manufacturer's rating for the anchor and the load, and do not improvise on anything heavy overhead.
Plaster and wood lath. Lath is a stack of horizontal wood strips, so an electronic finder reads dense almost everywhere. The magnet is the better tool here: it finds the lath nails, and lath nails are driven into studs. Find a vertical column of nails and you have found framing. Expect plaster and lath assemblies to run 3/4 to 1 inch thick, so fasteners need to be longer than they would be in drywall.
Concrete and masonry walls. No studs. Furring strips may be attached to the face, and those are what a stud finder picks up. Anything heavy goes into the masonry itself with a sleeve anchor or a wedge anchor, drilled with a hammer drill.
Vaulted and gable walls. Studs on a raked wall are still vertical and still 16 inches on center horizontally, even though their tops are cut at an angle. Measure horizontally, not along the slope.
Before you drill: what else lives in that wall
A stud finder finds framing. The wall also contains things you do not want to hit.
- Electrical cable. Code requires cable to sit at least 1.25 inches back from the face of the framing, or be protected by a steel nail plate where it cannot. That is why long screws near a stud edge are a bad idea. Use the AC detection mode on your finder, and if it lights up, stop and reroute your plan.
- Plumbing. Concentrated in wet walls: behind and beside sinks, toilets, tubs, and in the wall under a second floor bathroom. Treat any wall backing a bathroom or kitchen as suspect and use the shortest fastener that does the job.
- Gas lines. Some homes run flexible gas tubing through stud bays to fireplaces and ranges. Never drill blind in a wall near a gas appliance.
- Ducts and returns. A stud bay used as a return air path reads oddly and is often 14.5 inches wide with sheet metal on the back.
- Fire blocking. Horizontal blocking mid-height in a stud bay is common in older construction, and it reads as a stud on a horizontal sweep. Scan vertically as well as horizontally when a reading looks wrong.
The general rule for depth: know how deep your fastener goes and subtract the wall finish. With 1/2 inch drywall and a 3 inch lag, you are 2.5 inches into a 3.5 inch deep stud, which is safe. With a 4 inch screw you are through the back of the stud and into whatever is behind it.
Any work that involves opening the wall, altering framing, or moving electrical or plumbing is a different job with different rules. Electrical and gas work is licensed trade work in most jurisdictions, and structural changes typically require a permit. Check with your local building department first.
FAQ
Why does my stud finder beep everywhere?
It almost always calibrated over something dense: a stud, a pipe, a metal plate, or a damp patch. Lift the tool, move at least 12 inches, and start again on plain wall. Wall texture, foil-backed insulation, a weak battery, and double layer drywall also produce constant signals.
How accurate are stud finders?
A good center-finding model on standard 1/2 inch drywall is accurate to within about 1/4 inch when swept slowly and calibrated correctly. Accuracy drops sharply on plaster, tile, textured walls, and double drywall. Always confirm with the 16 inch rule and a small pilot hole before committing.
How far apart are studs in a wall?
Usually 16 inches on center in US residential framing, meaning center to center. Some newer construction, garages, and non-bearing partitions use 24 inches on center. Measure from the middle of one stud to the middle of the next, never edge to edge.
Can a stud finder detect pipes and wires?
Metal scan modes detect pipes and conduit, and AC detection modes sense the electromagnetic field around energized, unshielded cable. Neither is complete coverage. Dead circuits, shielded cable, and plastic PEX water lines can all go undetected, so treat a clean scan as helpful evidence rather than a guarantee.
Does a stud finder work on plaster walls?
Poorly, in standard mode. Wood lath reads as a wall full of framing and metal lath blocks the sensor entirely. A magnetic stud finder works better on plaster because it locates the lath nails, which are driven into the studs. Deep scan mode helps on some units.
How do I find a stud with my phone?
Phone apps use the built-in magnetometer, so they behave like a magnetic stud finder: they locate metal fasteners, not wood. They can work on drywall with steel screws if you sweep slowly, but sensitivity varies enormously by phone and case. Use one as a hint, not as your only check.
What if there is no stud where I need to hang something?
Use the right hollow wall anchor for the load and the orientation. Toggle bolts and heavy duty snap toggles carry the most in drywall, self-drilling anchors handle light items, and picture hooks handle very light ones. For anything heavy, or anything overhead, hit framing or add blocking rather than trusting an anchor.
Should I scan vertically as well as horizontally?
Yes, whenever a reading looks strange. Horizontal blocking, headers over doors and windows, and ductwork all produce wide readings on a horizontal sweep. A vertical sweep tells you whether the object continues up and down like a stud or stops like a block.
