How to Install a Ceiling Fan

Updated August 2026 · Home Project Resources

A ceiling fan needs a fan-rated box. A standard light fixture box will not hold one safely, no matter how solid it feels when you push on it, and this is the step people skip most often. A 40 pound fan moving at 200 rpm applies a twisting, cycling load that a plastic light box and its nails were never designed for.

So the job is really two jobs: confirm or install a fan-rated box, then hang the fan. Before either one, turn the breaker off and prove the wires are dead with a non-contact voltage tester. The wall switch is not proof, and a fixture that goes dark can still have a live conductor sitting in the box.

Painting the ceiling while the old fixture is down? That's the easiest time to do it. Our paint calculator gives you the gallons in about 20 seconds.

Updated August 2026

A note on numbers. This page gives you weight ratings, blade spans, downrod lengths and clearances, not dollar figures. Fans, boxes and electrician labor are priced by your region, your retailer and the specifics of your ceiling, and none of it is ours to set. Size the job here, then price the parts locally and get any hired work quoted itemized.

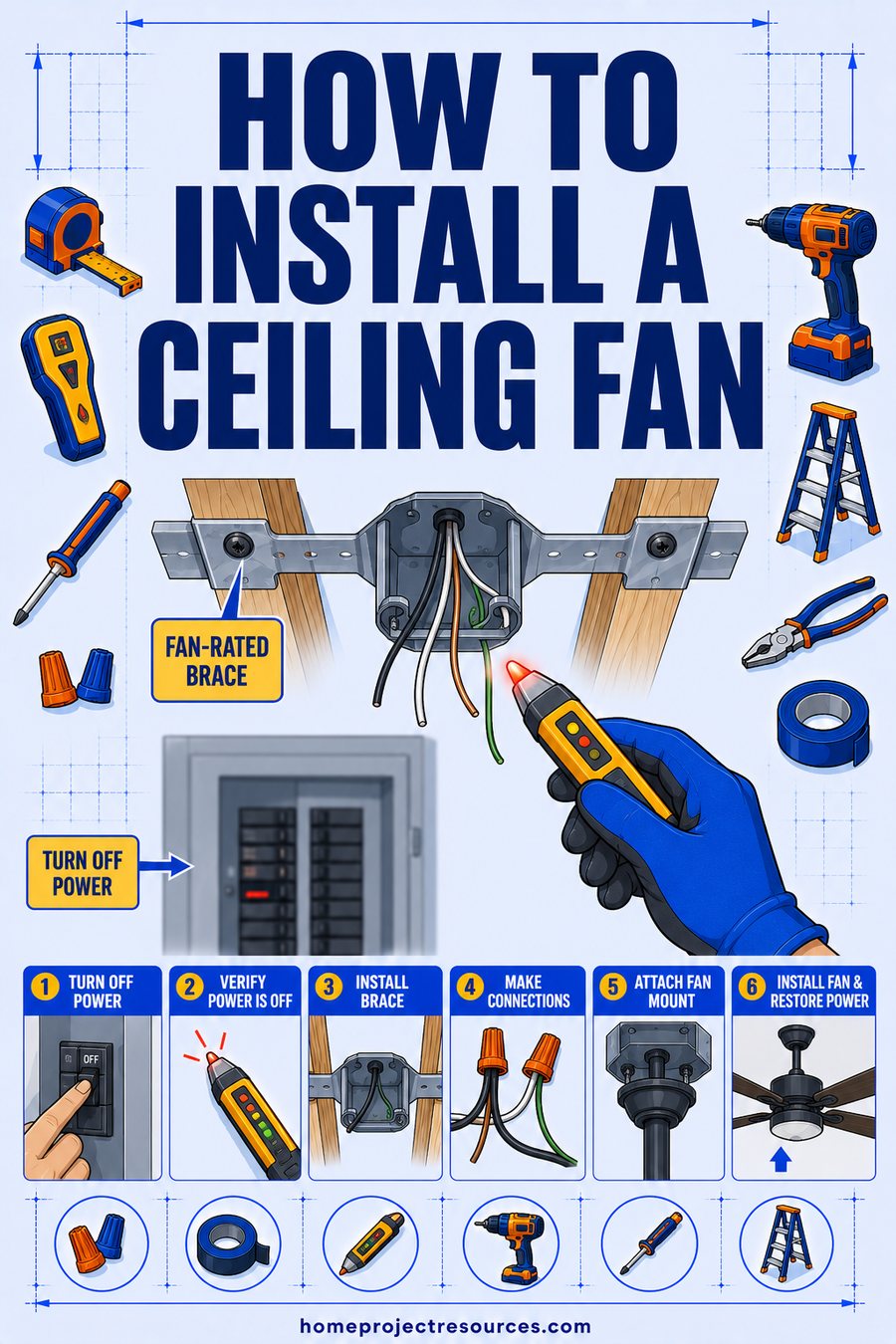

How to install a ceiling fan: the whole job in order

1. Kill the breaker and prove the wires are dead with a non-contact voltage tester.
2. Remove the old fixture and photograph the wiring before you disconnect anything.
3. Inspect the box. Is it fan-rated, is it stamped with a weight rating, is it anchored to structure.
4. Install a fan-rated box if it isn't one, either from the attic or with a braced retrofit box through the existing hole.
5. Assemble the fan on the floor, including the downrod and the canopy, before you lift anything.
6. Hang the motor housing on the mounting bracket hook so both your hands are free for wiring.
7. Wire it, ground first, then neutral, then hot or hots.
8. Tuck wires, seat the canopy, restore power, and test all speeds.
9. Attach blades last, then balance if it wobbles.

Plan on 2 to 3 hours for a straight swap where the box is already fan-rated. Add 1 to 3 hours if you need to install the box, and considerably more if you're running a new circuit or a new switch leg.

Step 1: breaker off, and confirmed dead with a tester

Do this first, and do it again after any break in the work.

1. Turn the light on at the wall switch, then go to the panel and flip breakers until it goes out. Leave the switch in the on position so the circuit stays complete for testing.
2. Put tape over the breaker and a note on the panel. Someone else in the house will flip it back otherwise.
3. Test the tester. Hold the non-contact voltage tester against a known live outlet or a cord you can see is plugged in. It should beep and light. A tester with a dead battery reads "safe" on everything, which is how people get hurt.
4. At the ceiling, test every conductor in the box, one at a time, including the bare ground and the whites. Then test the metal box itself.
5. Test again after you separate the wires. Two circuits can share a box. A switch loop can be wired to the neutral in older homes. A fan that goes dark tells you nothing about the second cable behind it.

Never rely on the wall switch. Standard 120 volt residential branch circuits are entirely capable of stopping a heart, and the fact that a fixture went off says only that one conductor got broken somewhere, not which one.

If the panel isn't labeled, or you flip every breaker and the light stays on, or the box has more cables than you can account for, that's the point to bring in an electrician.

Fan-rated boxes: what makes them different

A fan-rated box is built and listed to carry a moving, oscillating load. Three things separate it from a light box.

It's marked. A fan-rated box is stamped or labeled inside with wording like "Acceptable for fan support" and a weight rating, typically 35, 50, or 70 pounds. If there's no marking, treat it as not rated, regardless of how sturdy it looks.

It's mechanically anchored to structure. Either it screws directly to a joist, or it mounts to a braced bar that spans between two joists. A light box nailed to the side of a joist through two thin nails is not the same thing, and neither is a "pancake" box screwed to lath.

Its fastening is heavier. Fan-rated boxes take machine screws into metal, usually 10 to 32 or 8 to 32, not wood screws into plastic bosses. The fan's mounting bracket bolts to those.

Rules of thumb on ratings:

Weigh the fan if you're not sure. Most box packaging and fan boxes list weights, and the difference between a 22 pound flush mount and a 48 pound five blade with a light kit is the difference between two box choices.

Retrofitting a fan-rated box through an existing hole

This is the common case: an old light box in a ceiling with finished drywall and no easy access. The answer is an expandable braced box, sold as a "ceiling fan brace box" or a "retrofit fan box." It is one of the cheapest parts in the whole job and by far the most important one.

1. Power off and verified dead. Remove the old fixture and the old box. Old nailed boxes usually pry out with a flat bar, or you cut the nails with a reciprocating saw blade slipped alongside the joist.
2. Feed the collapsed brace bar up through the hole and lay it across the ceiling, perpendicular to the joists.
3. Rotate the bar by hand. The spiked feet bite into the joists on each side and the bar expands as you turn it. Keep turning until it's firm, then a bit more.
4. Attach the metal box to the bar with the supplied U-bolt saddle, position it centered in the hole, and tighten.
5. Pull the cable into the box through a clamp and reinstall the cable clamp or connector.

The honest note: retrofit braces work well when the joists on both sides are sound and the bar can actually reach them. They do not work if there's a duct, a beam, blocking, or a joist directly above the hole, and you can't always tell until the bar is up there. If the brace won't seat, the real fix is attic access, or opening a small piece of the ceiling and screwing a proper box to blocking. That means drywall repair afterward, which our drywall patch guide covers.

If you have attic access, use it. Working from above lets you screw a fan-rated box directly to a joist, or install solid blocking between joists, which is stronger and faster than fighting a brace blind from below. It also lets you see whether there are two cables in the box and where they run. Pull loose insulation back from the box while you work and put it back afterward without packing it tight, which is the same care described in how to insulate an attic.

Sizing a ceiling fan to the room

Blade span is the diameter of the circle the blades sweep. Too small and the fan just makes noise, too large and it dominates a small room and forces you to run it on low anyway.

Two more sizing points that matter more than blade count:

• Blade count is mostly aesthetic. Three, four, and five blade fans of the same span and motor move broadly similar air. More blades tends to mean slightly quieter and slightly less airflow per watt. Pick the look you want.
• Motor and pitch decide airflow. Blade pitch of 12 to 15 degrees is the useful range. A DC motor fan costs more up front, runs quieter, and draws roughly 60 to 70 percent less power than an AC motor fan of the same output.

Fans sort into three broad tiers, and knowing which tier you are shopping matters more than any figure. A basic AC fan is the cheapest of the three. A mid range fan with an integrated light kit and a remote sits above it, and roughly doubles again for a DC motor or a designer body. Labor sorts the same way: a straight swap onto an existing fan-rated box is the short version of the job, while installing a box or modifying wiring is a longer visit and quoted accordingly. If you are hiring it out, tell the electrician on the phone whether the existing box is fan-rated, because that single fact is what separates the two quotes.

Downrod length, ceiling height, and clearances

The fan should hang so the blades sit 8 to 9 feet above the floor. That's the height where you feel the air without the fan feeling low.

Hard clearances to respect:

• 7 feet minimum from the floor to the blades. This is the National Electrical Code minimum, and it's what an inspector checks.
• 18 inches minimum from the blade tips to the nearest wall, 24 inches preferred. Closer than that and airflow gets choppy and noisy.
• 10 inches minimum from the ceiling to the blades for airflow. Flush mount huggers get less and move noticeably less air, which is the tradeoff.
• Never over a bathtub or shower unless the fan is listed as damp or wet rated and the location complies with the code zone rules. A standard dry-rated fan in a shower area is a real hazard.
• Outdoors or on a covered porch, use a damp rated fan. Fully exposed to rain requires a wet rated fan.

Sloped ceilings. Most fans handle a slope up to about 15 or 20 degrees with the ball-and-socket hanger they ship with. Steeper than that needs a sloped ceiling adapter, an inexpensive part specific to the fan brand, that lets the canopy sit flat against the angled ceiling while the downrod hangs plumb. Check the fan's maximum rated slope before you buy, because some go to 45 degrees with the adapter and some stop at 30. On a slope, you also usually need a longer downrod so the high side of the blade circle clears the ceiling.

Wiring a ceiling fan

Assemble on the ground first: slide the downrod into the motor housing collar, feed the fan wires up through the rod, install the cross pin and the set screws, and slip the canopy over the rod before you go up the ladder. Then mount the bracket to the box with the machine screws that came with the fan, and hang the motor on the bracket's hook or shelf.

Standard connections, with everything still dead:

• Bare copper or green from the fan to the bare or green in the box, and to the green screw on the mounting bracket if there is one.
• White to white, neutral.
• Black to black, the fan motor hot.
• Blue to the second hot if you have separate control. Blue is nearly always the light kit.

Use wire connectors sized for the number and gauge of conductors, twist them on firmly, and give every splice a real tug test. A splice that pulls apart in your hand would have failed in the box, where you can't see it.

The extra conductor, and what to do with only two

Separate wall control of fan speed and light needs three conductors plus ground between the switch box and the fan box, meaning a 14/3 or 12/3 cable, giving you black, red, white, and bare. Black feeds the motor, red feeds the light.

Older homes usually have 14/2 or 12/2, meaning one hot only. Three honest options:

1. Tie black and blue together onto the single hot. The fan and light then switch as one unit, and you control speed with the pull chains. Simple, free, and perfectly safe.
2. Add a remote receiver. The receiver sits in the canopy above the fan, takes the single hot in, and separates fan and light control at a handheld or wall-mounted remote. This is the most common fix. Many fans now ship with the receiver included, and where they do not it is an inexpensive add-on. It needs enough canopy space, so check the fan's specs.
3. Run new 3 conductor cable from the switch to the fan. Best result, most work, and it means opening walls or fishing through them. This is often the point to hire an electrician.

Two things not to do. Don't put a ceiling fan motor on a standard incandescent dimmer, which will hum, overheat, and can damage the motor. Use a fan-rated speed control or the fan's own remote. And don't use the ceiling fan's light kit dimming to control the motor.

Once wired, fold the splices up into the box in a loop rather than a bundle, seat the canopy against the ceiling, tighten the canopy screws, then attach the blades. Blades last is not a preference, it's what keeps you from bending a blade while you wrestle the canopy.

Balancing a wobbling fan

Almost every wobble is mounting or blade balance, not a bad motor. Motors fail by making noise, running slow, or not running. They don't cause wobble. Work through this list in order and you will find it.

1. Check the box and bracket screws. Push up on the canopy. Any movement at all means the bracket or the box is loose. Power off, drop the canopy, and tighten. If the box itself moves, that box is not adequate and needs replacing, which is the real answer more often than people want to hear.
2. Check the downrod pin and set screws. The cross pin should be seated with its retaining clip on, and the set screws snug on the flats.
3. Check every blade screw, at the motor and at the blade iron. Loose blade irons are the single most common wobble cause.
4. Measure blade tip to ceiling. With the fan off, hold a tape measure or yardstick against the ceiling at one blade tip, then rotate each blade by hand to the same spot and measure again. Any blade more than about 1/8 inch off the others is the problem. Gently bend the blade iron to match, or swap that blade's position with another and re-measure.
5. Check for a warped blade. Set the blades on a flat floor and stack them. A warped or moisture-swollen blade won't sit flat. On a covered porch fan, this is common, and the answer is a matched replacement set, not a single blade.
6. Use the balancing kit. Nearly every fan ships with one, a plastic clip and small stick-on weights. Move the clip to the middle of one blade, run the fan, and note whether wobble improved or worsened. Try each blade in turn. Once you find the blade that helps most, slide the clip in and out along that blade until the wobble is smallest, then stick a weight on the top of the blade at that point and remove the clip.
7. Clean the blades. Uneven dust buildup genuinely unbalances a fan, especially in a kitchen where the dust is greasy.

If wobble persists after all of that, the downrod is likely bent, usually from shipping or from someone hanging something on the fan. A replacement downrod is one of the cheaper parts on the fan, and the brand will sell you the exact one.

Direction: summer versus winter

Every fan has a small slide switch on the motor housing, or a reverse button on the remote. It matters more than people think.

Summer, counterclockwise, higher speed. The blades push air straight down and create a breeze you feel directly. That wind chill effect makes a room feel roughly 4 degrees cooler without changing the actual temperature, which is why you can raise the thermostat setting and still be comfortable.

Winter, clockwise, low speed. The blades pull air up the middle and push the warm air that's collected at the ceiling gently down the walls. You should not feel a draft. If you do, the speed is too high and you're undoing the benefit.

The winter setting earns its keep in rooms with ceilings over 9 feet, where the temperature difference between floor and ceiling can be 5 to 10 degrees. In an 8 foot room, the effect is small.

One rule that saves money: fans cool people, not rooms. A ceiling fan running in an empty room does nothing except add a little heat from the motor. Turn it off when you leave.

Worked example: a bedroom fan, sized and specified

A 13 by 14 foot bedroom with a flat 9 foot ceiling and an existing switched light on a plastic light box.

• Area: 13 x 14 = 182 sq ft, largest dimension 14 ft. From the sizing table, that lands in the 52 to 56 inch band. Pick a 52 inch fan.
• Wall clearance check: a 52 inch fan sweeps 26 inches from center. Centered in a 13 foot (156 inch) width, the blade tip sits 78 minus 26 = 52 inches from each wall. Comfortably past the 18 inch minimum.
• Downrod: 9 foot ceiling, so a 6 inch rod. Fan canopy plus rod plus motor drops the blades to roughly 8 feet 3 inches off the floor. Above the 7 foot code minimum, in the 8 to 9 foot sweet spot.
• Box: the existing plastic light box is not fan-rated, so it comes out. The chosen fan weighs 34 pounds with its light kit, so a 35 pound retrofit braced box would technically do, but a 50 pound rated brace costs barely more and removes the argument. Installed through the existing hole.
• Wiring: the box has 14/2 only, black and white plus ground. The fan came with a remote receiver, so black and blue both land on the receiver output and the single switched hot feeds it. Wall switch stays on all the time, and speed and light run from the remote.
• Shopping list: the fan, a 50 pound rated retrofit brace box, wire connectors and electrical tape. About three hours of work, including the box swap.

If the ceiling needs touching up afterward where the old canopy sat, our paint calculator will size the job, and a swap that turns out to be a simple like-for-like light replacement is covered in how to replace a light fixture.

When to call an electrician

Some of this is genuinely DIY and some of it isn't. Call a licensed electrician if:

• There's no box at all, or the fixture is wired directly to cable coming through a hole.
• You need a new circuit, a new switch leg, or 3 conductor cable fished through finished walls.
• The existing wiring is knob and tube, or cloth-insulated with crumbling insulation. Disturbing it is how a repair becomes a rewire.
• There's no ground conductor. Common in pre 1960s homes, and it needs a real solution, not a workaround.
• You find aluminum branch wiring, typically mid 1960s to mid 1970s. Connections to aluminum need listed connectors and specific technique.
• The box has multiple cables and you can't identify the switch leg.
• The ceiling is over about 12 feet, or the work needs scaffolding.
• Your jurisdiction requires a permit. Replacing a fixture on an existing circuit usually doesn't. Adding a circuit, adding a switch, or altering wiring usually does. Call your local building department and ask, because the rules vary by city and the answer takes one phone call.

Pre-1978 homes: assume any painted surface you disturb contains lead paint until it's tested. Cutting a ceiling to fit a box creates dust. Use a certified renovator, or test first with a lead check swab and follow lead-safe work practices, meaning plastic sheeting, wet methods, HEPA cleanup, no dry sanding. Pre-1990 homes: popcorn ceiling texture and old duct wrap may contain asbestos. Do not sand, scrape, or drill into popcorn texture without testing it. A lab sample test is inexpensive next to the alternative and is worth doing.

Frequently asked questions

Can I put a ceiling fan on an existing light fixture box?

Only if that box is marked fan-rated and is anchored to structure. A standard light box, whether plastic or metal, is rated to hold a static fixture of about 50 pounds hanging still, not a moving load. Fan vibration works fasteners loose over time, and the failure mode is a fan on the floor. Look inside the box for a stamped weight rating and the words about fan support. No marking means replace it.

How do I know if my box is fan-rated without taking the fixture down?

You can't, reliably. The marking is inside the box. Turn the breaker off, verify the wires are dead, drop the fixture, and look. While you're there, check that the box is screwed to a joist or a brace bar rather than nailed through its side, because plenty of boxes carry a rating and still weren't installed to structure.

What size ceiling fan for a 12x12 room?

A 12 by 12 room is 144 square feet, so a 48 to 52 inch blade span fits. A 52 inch fan centered in a 12 foot room puts the blade tips 46 inches from each wall, well clear of the 18 inch minimum. Go 48 inch if the room has a low 8 foot ceiling or heavy furniture near the walls.

Do I need a special ceiling fan for a sloped ceiling?

Not a special fan, but usually an adapter. The ball-and-socket hanger most fans ship with handles roughly 15 to 20 degrees of slope. Beyond that you need the brand's sloped ceiling adapter, an inexpensive part, plus generally a longer downrod so the high side of the blade circle clears the ceiling. Check the fan's maximum rated slope before buying.

Why does my ceiling fan wobble, and is the motor bad?

Almost certainly not the motor. In order of likelihood: loose blade screws, loose mounting bracket or box screws, one blade sitting at a different height, a warped blade, uneven dust, or a bent downrod. Measure each blade tip to the ceiling first, since that finds the fault most of the time. Use the balancing kit that came with the fan for the remainder.

Can I control fan speed with the dimmer that's already there?

No. A standard incandescent dimmer on a fan motor causes humming, overheating, and motor damage. Replace it with a fan-rated speed control, or use the fan's remote and leave the wall switch on. If the same switch also controls a light kit, a remote receiver in the canopy is the clean answer.

How long does it take to install a ceiling fan?

Two to three hours for a swap onto an existing fan-rated box, including assembly and balancing. Add one to three hours to remove an old box and install a braced retrofit box. Add much more, or an electrician, if you need new cable or a new switch. First-timers should plan for the whole afternoon rather than rushing the wiring.

Which way should my fan spin, and how much does it actually save?

Counterclockwise in summer at a higher speed, which creates a direct breeze that makes a room feel roughly 4 degrees cooler. Clockwise on low in winter, which pushes warm ceiling air down the walls without a draft. Summer savings come from raising the thermostat setting a few degrees, not from the fan cooling the air, and only while someone is in the room.

The short version

The box is the whole ballgame. Fan-rated, marked with a weight rating, and anchored to structure. Everything else on this page is straightforward once that part is right.

Kill the breaker and prove the wires are dead before every stage. Size the fan to the room, set the downrod so the blades land 8 to 9 feet off the floor, keep 18 inches from the walls and 7 feet from the floor as hard minimums, and hang the blades last. If the wobble shows up later, it's mounting or blade alignment, so start there rather than blaming the motor.

If what you actually have is a plain fixture swap with no fan involved, how to replace a light fixture is the shorter job, and any ceiling you open along the way is handled in how to patch drywall.
